ASROCK

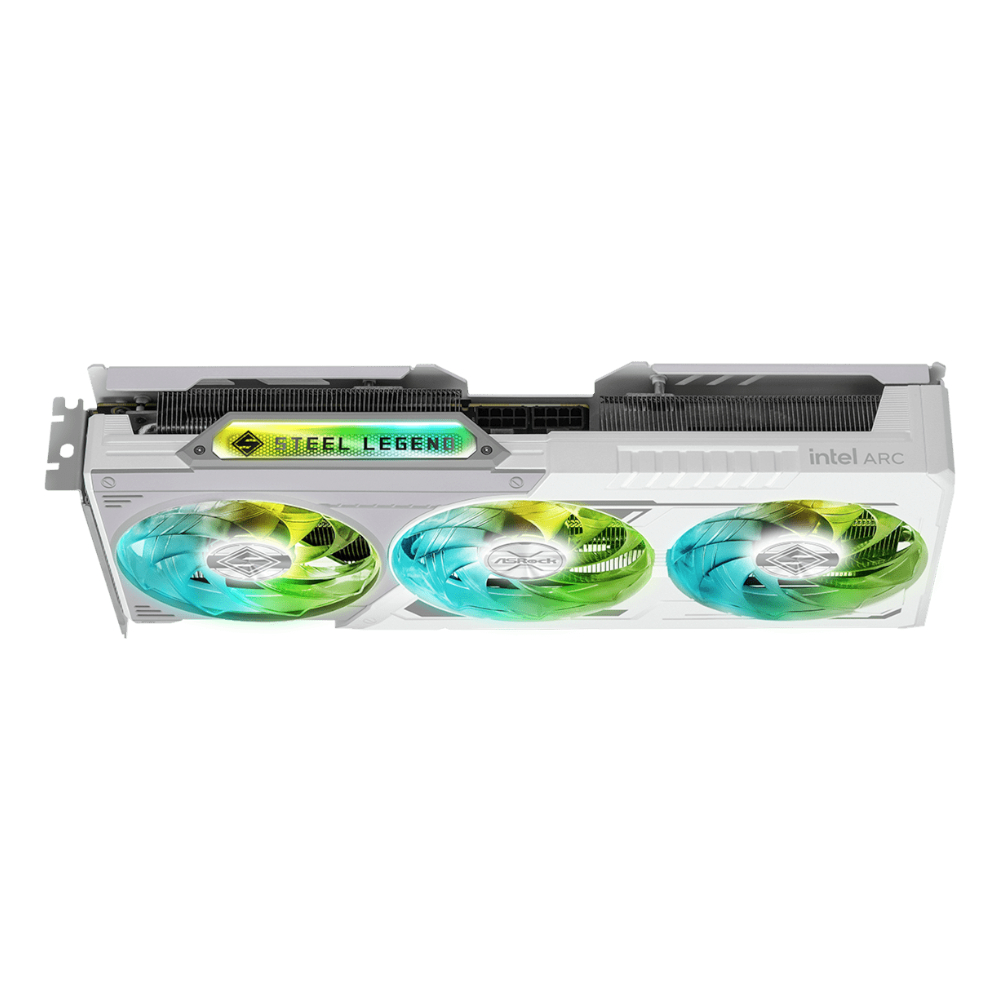

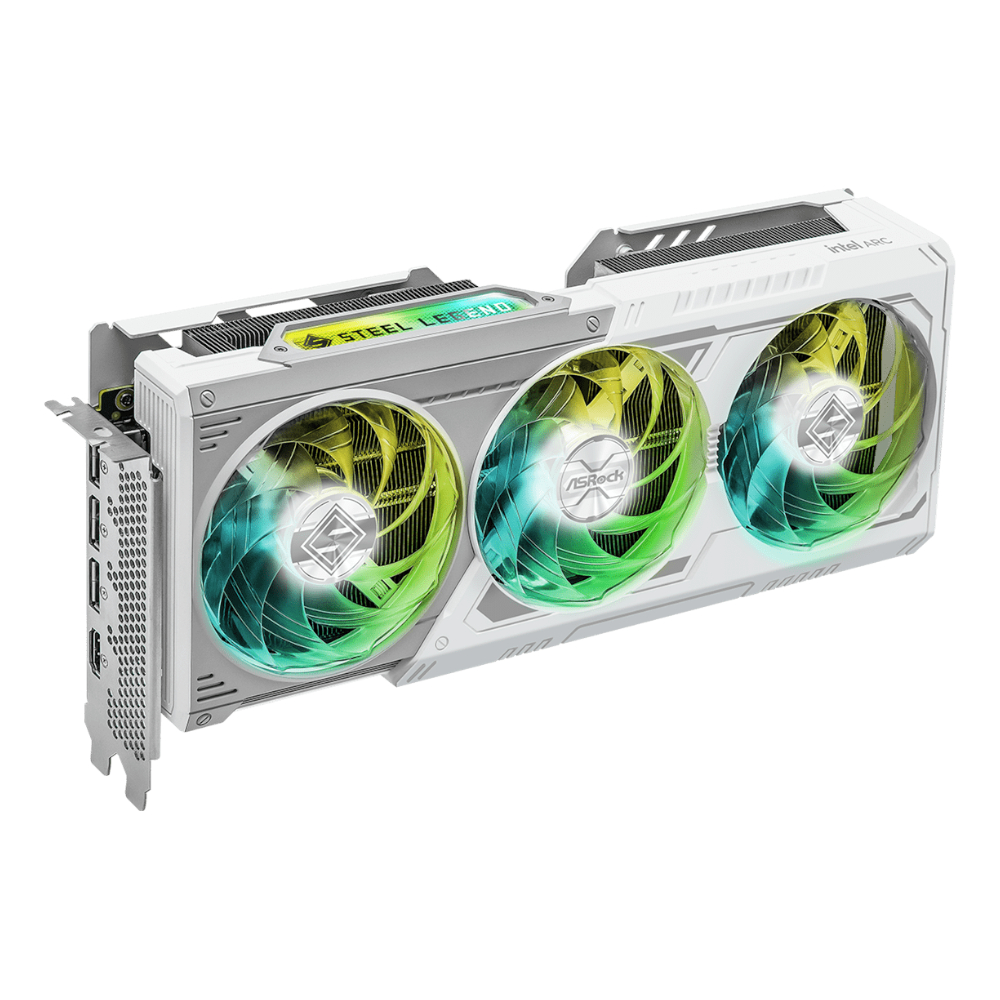

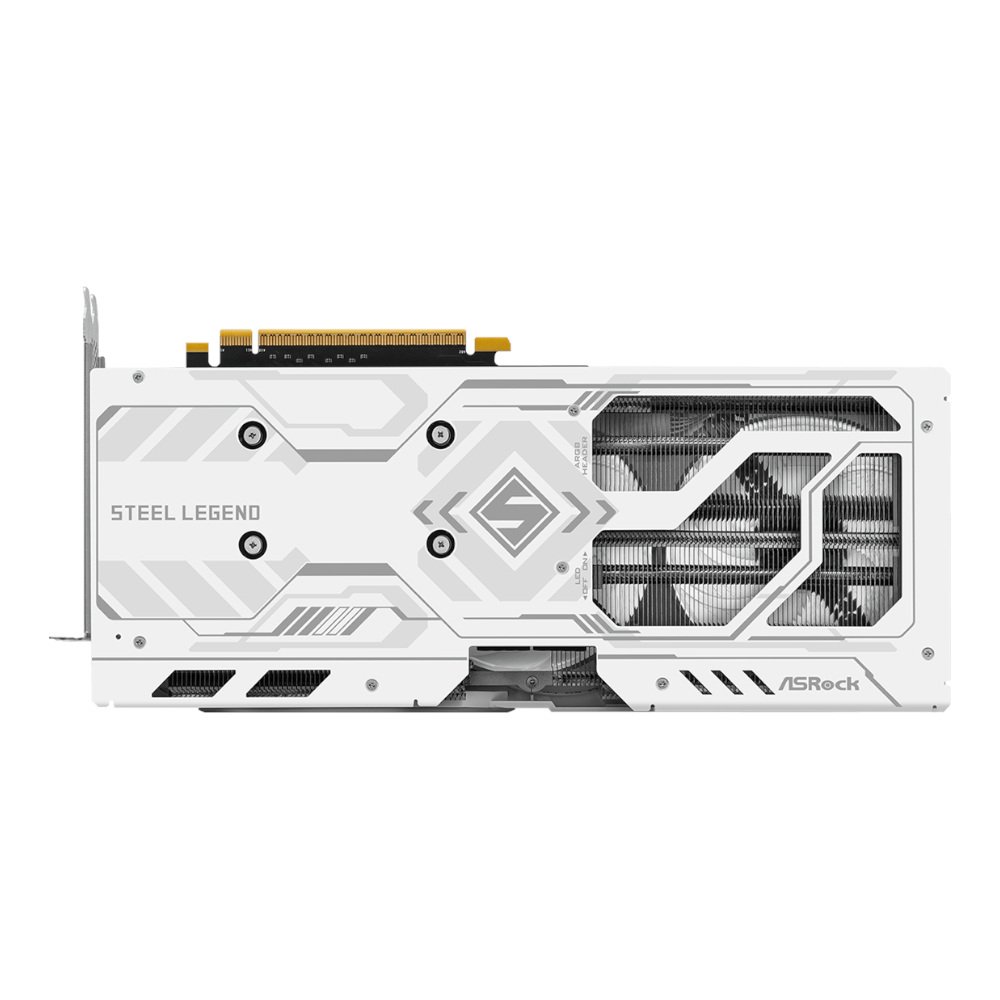

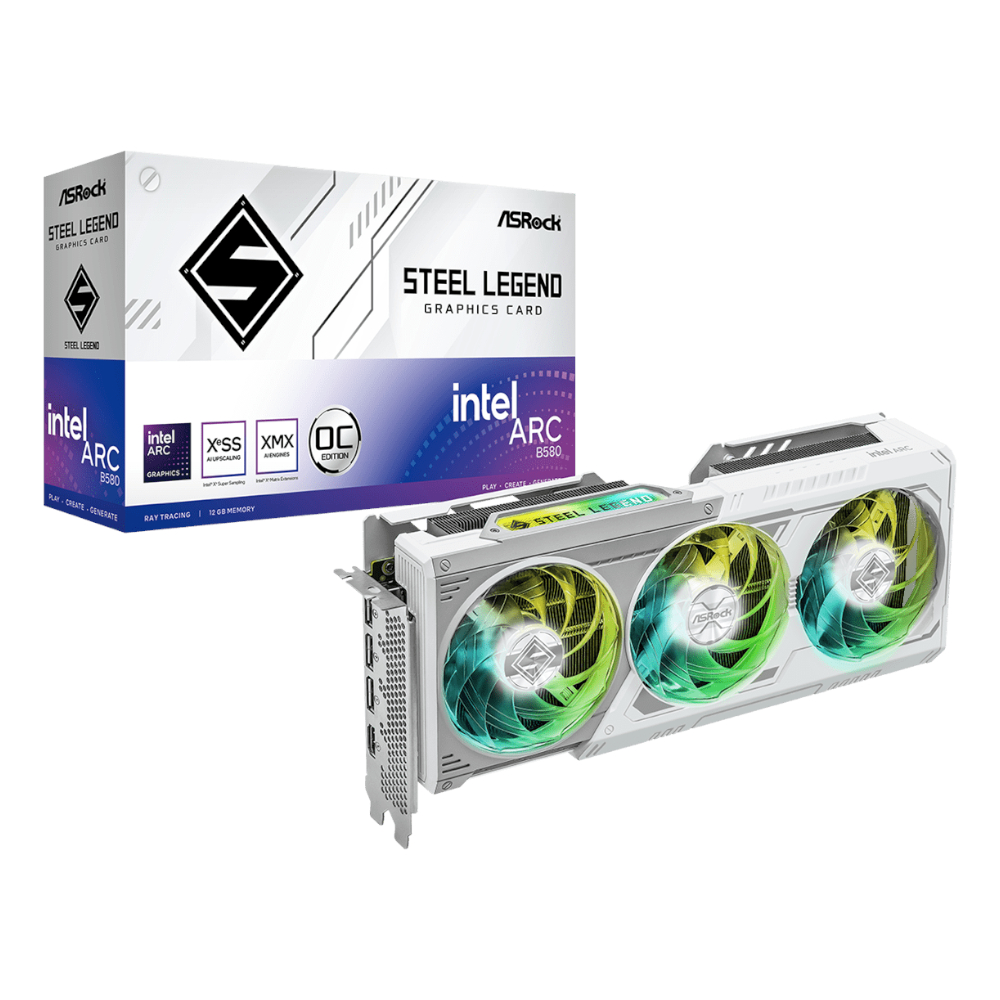

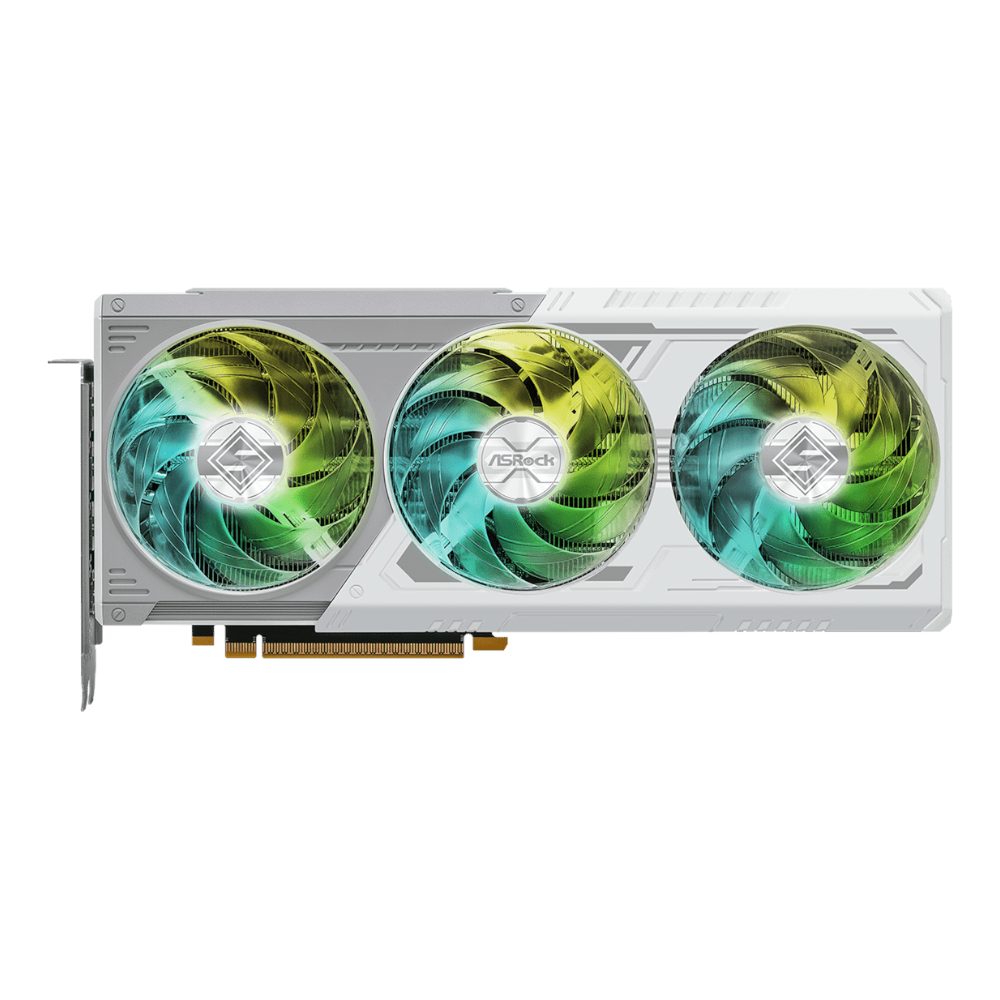

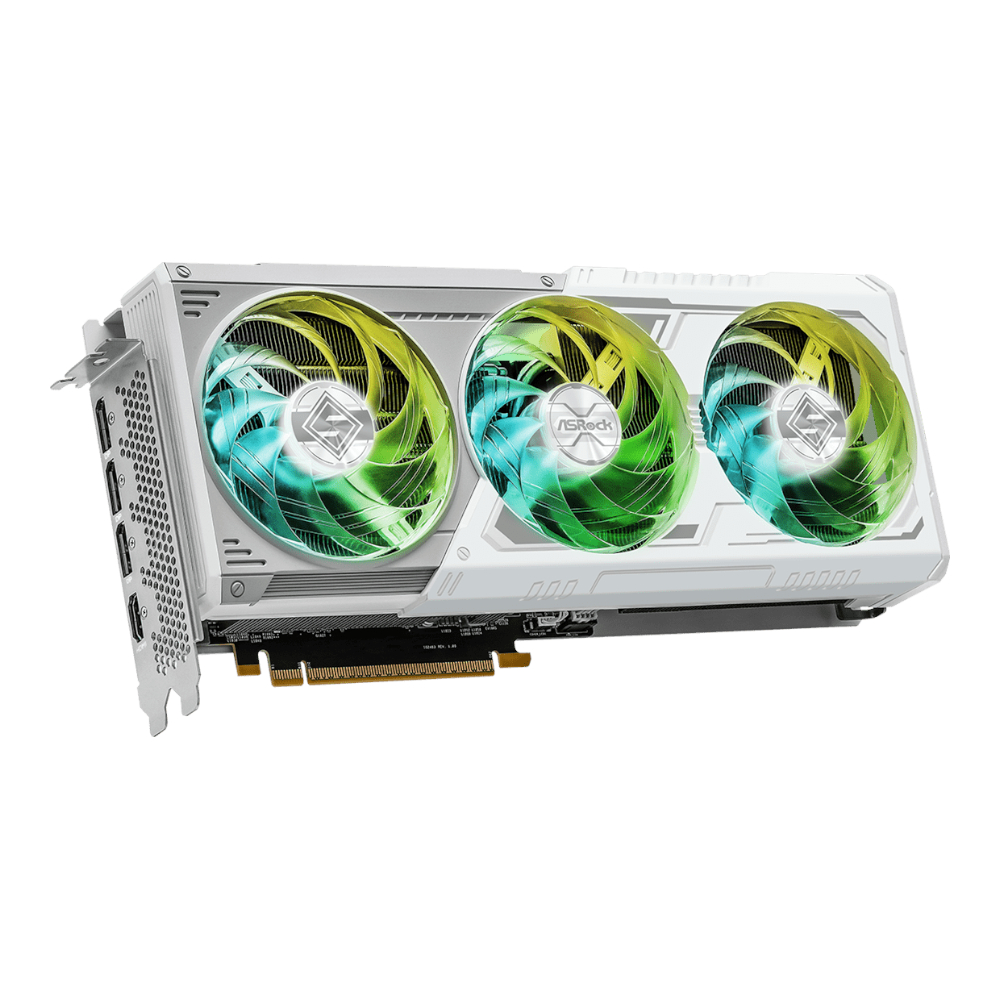

ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 192-BIT Graphics Card

SKU: 90-GA5CZZ-00UANF  ·  Part #: 90-GA5CZZ-00UANF
Out of Stock · Available to order — request a quote for lead time
R7 244,00 Incl.

Out of stock

Need bulk pricing or delivery confirmed? Build a quote in seconds.
✓ This order qualifies for FREE nationwide delivery
Pretoria: Free delivery — same-day if paid before 10:00.
Nationwide: Free over R5,000 otherwise R99.
✓ Authorized Reseller
✓ 3-Year Warranty
✓ 100% Genuine Local Stock
✓ Secure Checkout
We accept
  • EFT
  • Visa — coming soon
  • American Express — coming soon
  • Maestro — coming soon
  • Instant EFT — coming soon
  • Apple Pay — coming soon
  • Google Pay — coming soon
  • Samsung Pay — coming soon
  • Scan to Pay — coming soon

ASRock’s Steel Legend take on the Intel Arc B580 pairs Intel’s Xe2-HPG graphics architecture with a generous 12 GB of GDDR6 memory on a 192-bit bus — noticeably more VRAM than most cards at this price, which pays off at 1440p and in texture-heavy titles.

The card boosts to 2800 MHz out of the box and carries 160 XMX AI engines, giving hardware acceleration for Intel XeSS 2 upscaling and frame generation as well as AI workloads. Twin media engines with full AV1 encode and decode make it a strong choice for streaming and video work, and DirectX 12 Ultimate support covers modern ray-traced titles.

Cooling is handled by a triple striped-ring fan array over ultra-fit heatpipes with air-deflecting fins and 0dB silent mode, so the card is inaudible at idle. The white-themed shroud and metal backplate carry ARGB lighting with Polychrome SYNC and a physical LED switch. Display outputs are three DisplayPort 2.1 and one HDMI 2.1a.

Highlights
✓ 12GB GDDR6 on a 192-bit bus
✓ Intel Arc B580 on the Intel Xe2-HPG architecture
✓ Intel XeSS 2 with frame generation and AV1 encode
✓ Factory-overclocked out of the box
✓ Triple-fan cooler with a metal backplate
✓ 3× DisplayPort 2.1 and 1× HDMI 2.1a
12GB
GDDR6 memory on a 192-bit bus.
Intel Arc B580
Dedicated graphics for gaming and content creation.
Factory OC
Shipped above reference clocks by the board partner.
Graphics Processor
GPU
Intel Arc B580
Architecture
Intel Xe2-HPG
API Support
DirectX 12 Ultimate
API Support
DirectX 12 Ultimate
Memory
Memory Size
12GB GDDR6
Memory Bus
192-bit
Memory Bandwidth
456 GB/s
Memory Bandwidth
456 GB/s
Connectivity
Interface
PCI Express 4.0 x8
Display Outputs
3× DisplayPort 2.1, 1× HDMI 2.1a
Power & Cooling
Recommended PSU
650 W
Cooling
Triple-fan cooler with a metal backplate
Card Dimensions
298 × 131 × 51 mm
Cooling
Triple striped-ring fans · 0dB silent cooling
Lighting
ARGB with Polychrome SYNC and LED switch
Warranty

This product is covered by its full manufacturer warranty. As an authorized reseller, all our stock is genuine local product — never grey imports — and is backed by the official South African distributor.

Faulty items within the warranty period are handled through our RMA process. Keep your invoice and original packaging where possible to speed up any claim.

Delivery
✓ Free delivery in Pretoria on every order — same-day if placed & fully paid by 10:00 on a business day.
✓ Free nationwide delivery on orders over R5 000,00.
✓ Flat R99 to any other address in South Africa.
✓ Main centres 1–2 business days · regional 2–3 business days.
