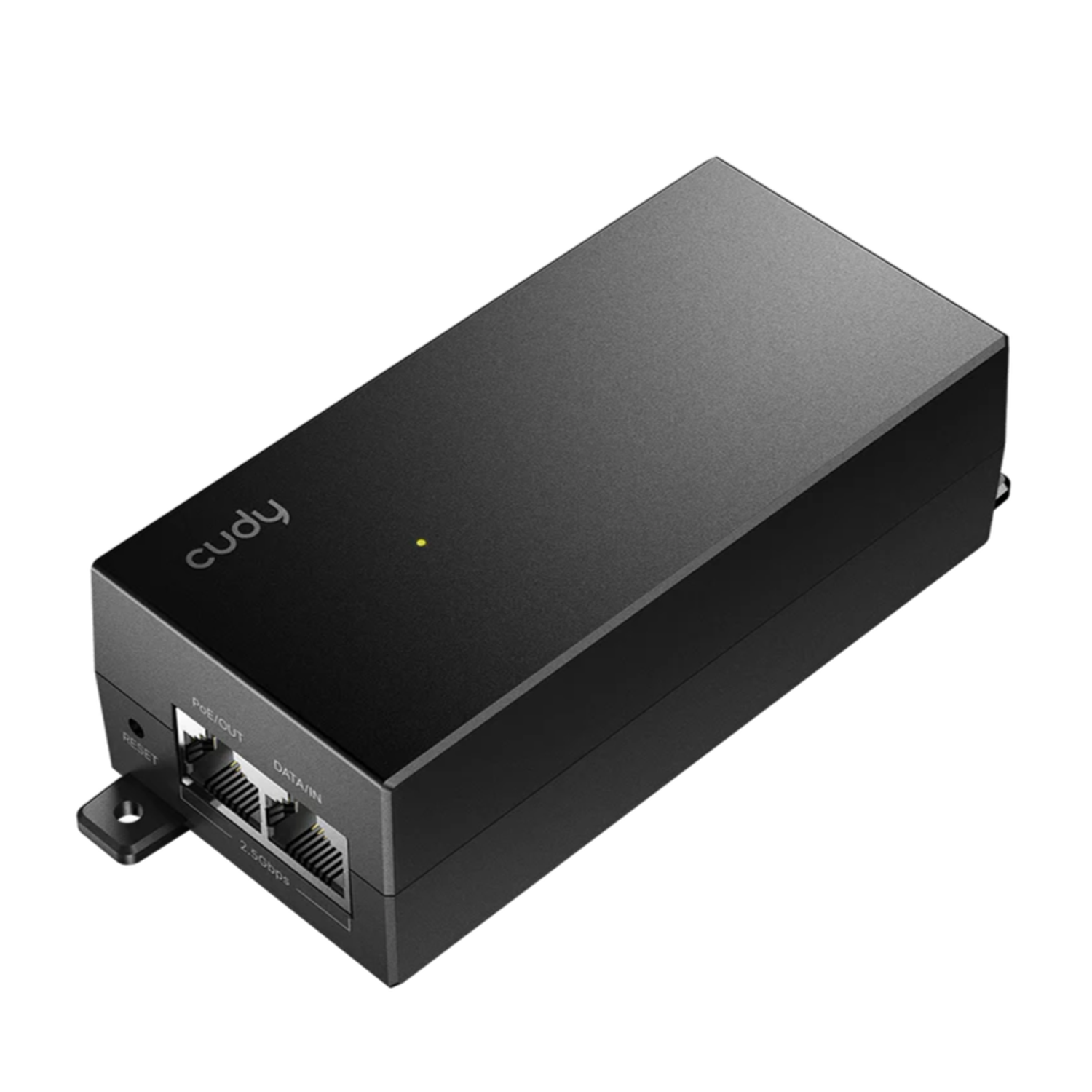

Cudy 30W 2.5Gbps Gigabit PoE+ Injector

2.5Gbps data throughput | Up to 30W PoE output | IEEE 802.3at/af compliant | Wall-mountable design | Built-in surge protection

The Cudy POE200H is a 2.5Gbps PoE injector designed for installers and network administrators who need to power PoE devices — such as IP cameras, access points, and VoIP phones — without replacing their existing switch. Plug your network cable into the DATA/IN port and connect the PoE/OUT port to your device: the injector combines data and up to 30W of power over a single Cat. 5e or higher cable, reaching up to 100 metres at both Gigabit and 2.5 Gbps speeds. IEEE 802.3at/af compliance ensures broad compatibility with standard PoE devices, while built-in surge protection and ESD protection safeguard connected equipment. The compact plastic housing supports both desktop and wall-mount installation, keeping it tidy in any rack room or ceiling void.

Features

• 2.5GbE uplink and downlink ports support speeds of 10/100/1000/2500 Mbps
• Delivers up to 30W of PoE power output at 54V — compatible with IEEE 802.3at and 802.3af devices
• 100-metre transmission distance over Cat. 5e or higher cable at both Gigabit and 2.5 Gbps
• Mode A pin assignment on the downlink port
• Power and PoE status LEDs for at-a-glance monitoring
• Surge protection (Power: DM 4kV, CM 4kV; RJ45: CM 4kV) and Level 3 ESD protection
• Supports desktop and wall-mount installation
• Wide AC input range: 100–240V 50/60Hz

Specifications

• Accessory Type: PoE Injector
• Standard / Category: IEEE 802.3at/af
• Colour: Black
• Warranty: 24 months
• Product Dimensions: 12.3 x 5.1 x 3.5 cm

What’s in the Box

• Cudy 30W 2.5Gbps PoE Injector (POE200H) – Black x1
• Power Cord x1
• Installation Guide x1
