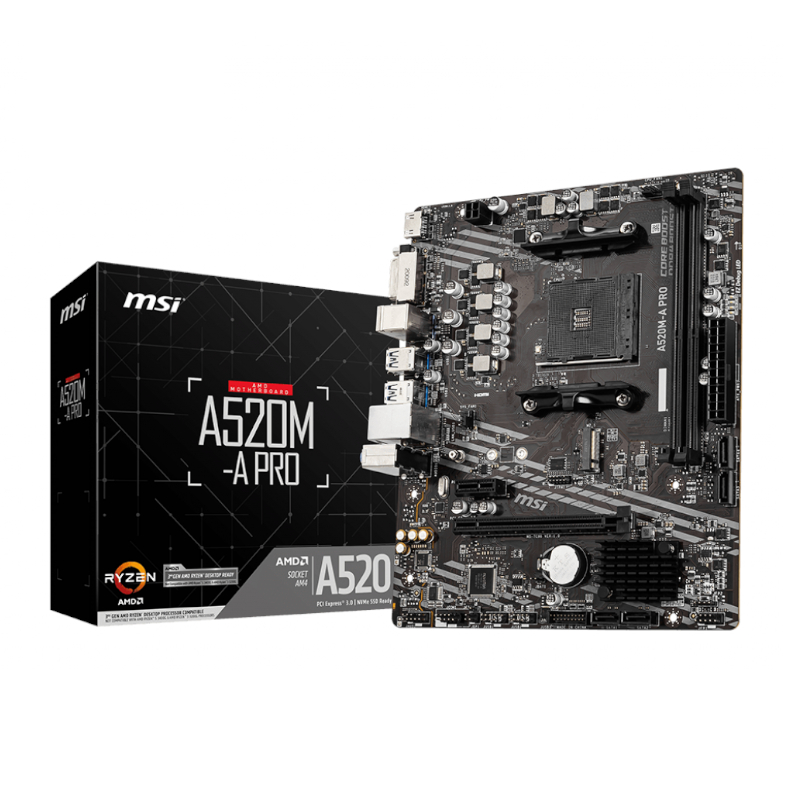

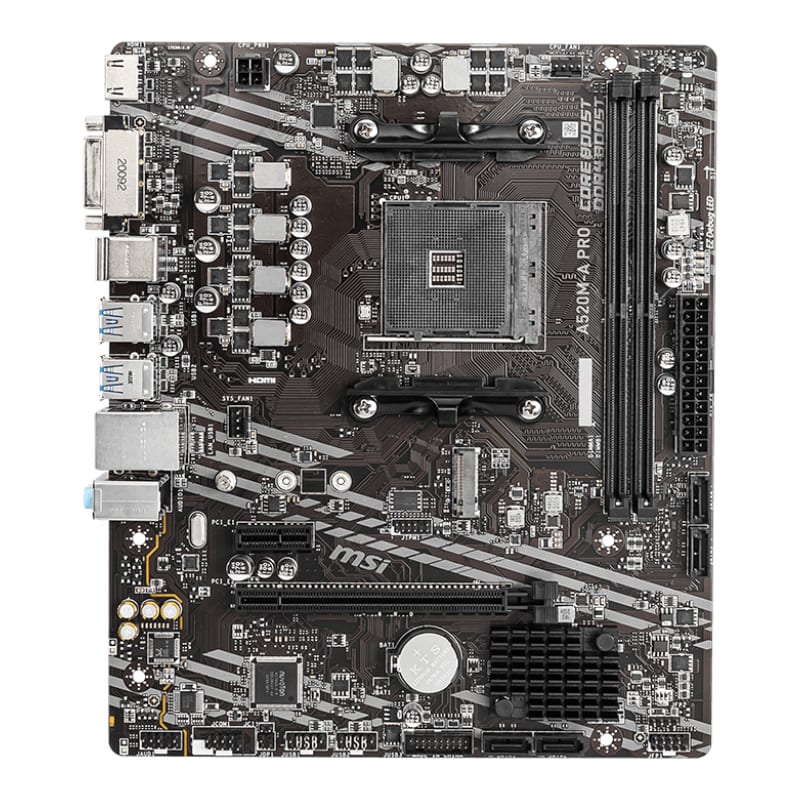

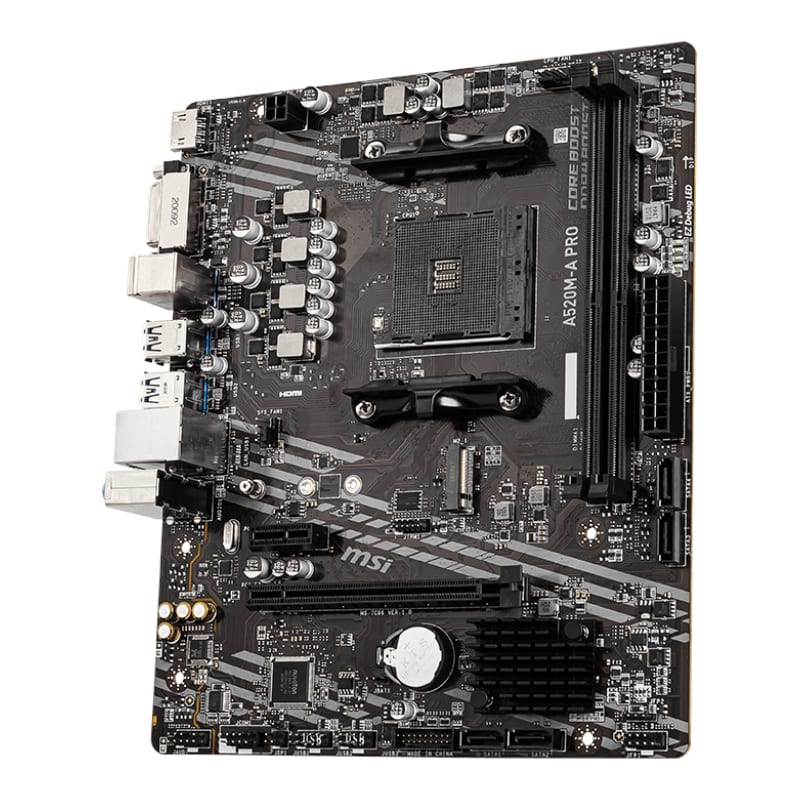

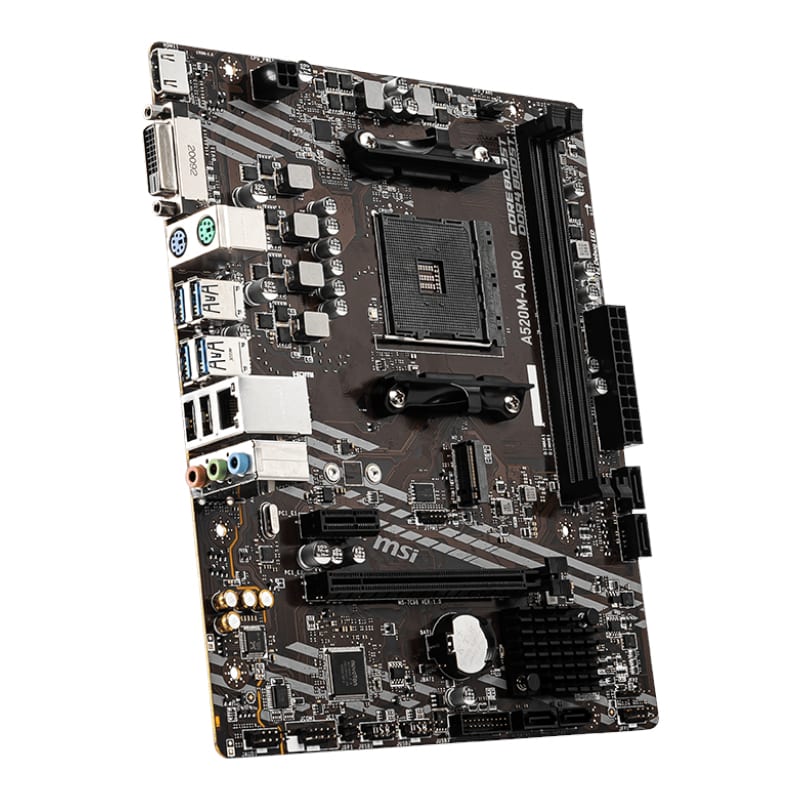

MSI A520M-A PRO AM4 AMD MATX Gaming Motherboard

The MSI A520M-A PRO AM4 mATX motherboard is engineered for professionals seeking exceptional system performance and stability. Built to support 3rd Gen AMD Ryzen processors and the Ryzen 4000 G-Series Desktop Processors, it provides a versatile platform for both gaming and productivity workloads. Designed with high-end features such as Turbo M.2 for enhanced SSD performance and DDR4 Boost technology, this motherboard ensures efficient data handling and uncompromising reliability.

Perfect for professionals in need of a stable system for intense workloads, the A520M-A PRO is equipped with Intel LAN for optimal online performance, making it an ideal choice for online gaming enthusiasts and esports competitors. Whether you’re enhancing your sound experience with Audio Boost or looking for dependable connectivity, this motherboard delivers.

MSI’s rigorous memory testing with leading brands like Corsair, Kingston, and G.Skill guarantees that your system will maintain optimal stability under even the most demanding conditions. With an advanced layout and premium digital power design, the A520M-A PRO supports high-core processors and provides high efficiency, empowering users to fine-tune their system for maximum performance.

FEATURES:

• Supports 3rd Gen AMD Ryzen and AMD Ryzen 4000 G-Series desktop processors
• DDR4 memory support: Overclock up to 4600 MHz for exceptional performance
• Turbo M.2: PCI-E Gen3 x4 for maximum NVMe SSD speeds
• Core boost: Advanced digital power design to handle more cores, delivering superior performance
• DDR4 boost: Ensures pure data signals for optimal stability and performance
• 2oz thickened copper PCB: Enhanced heat dissipation and performance reliability
• Audio boost: Studio-grade sound for the ultimate audio experience
• Intel LAN: Stable internet connection for championship-level online play

SPECIFICATIONS:

• Socket: AMD Socket AM4
• Chipset: AMD A520 Chipset
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 64
• PCI-E x16: 1
• PCI-E GEN: Gen3
• PCI-E x1: 1
• SATAIII: 4
• M.2 Slot: 1
• RAID: 0/1/10
• TPM (Header): 1

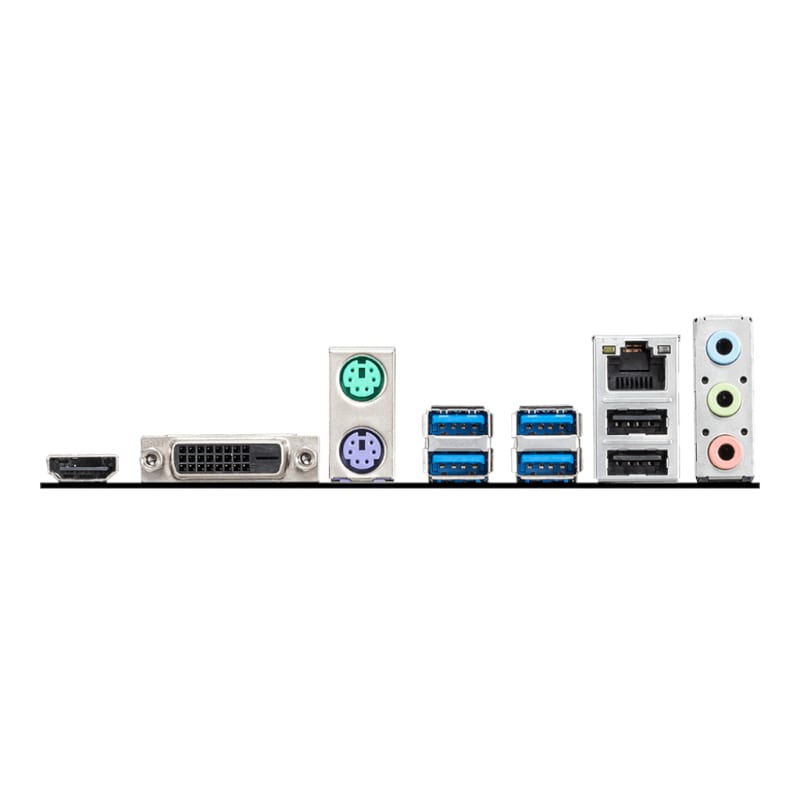

• USB 3.2 ports (Front): 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 4(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 2(Type A)
• Serial Ports(Front): 1
• Audio ports (Rear): Realtek ALC892/ALC897 Codec
• DVI-D: 1
• HDMI: 1
• DirectX: 12
• CPU (Max Support): Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen4000 G-Series Desktop Processors
• DDR4 Memory:
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
• LAN: 1x Realtek RTL8111H Gigabit LAN
• Form Factor: M-ATX
• Operating System: Support for Windows 10 64-bit
• Dimensions: 23.6 x 20 cm

WHAT’S IN THE BOX:

• MSI A520M-A PRO AM4 AMD MATX Gaming Motherboard x1
• SATA cables x2
• I/O Shield x1
• Quick Install Guide x1
