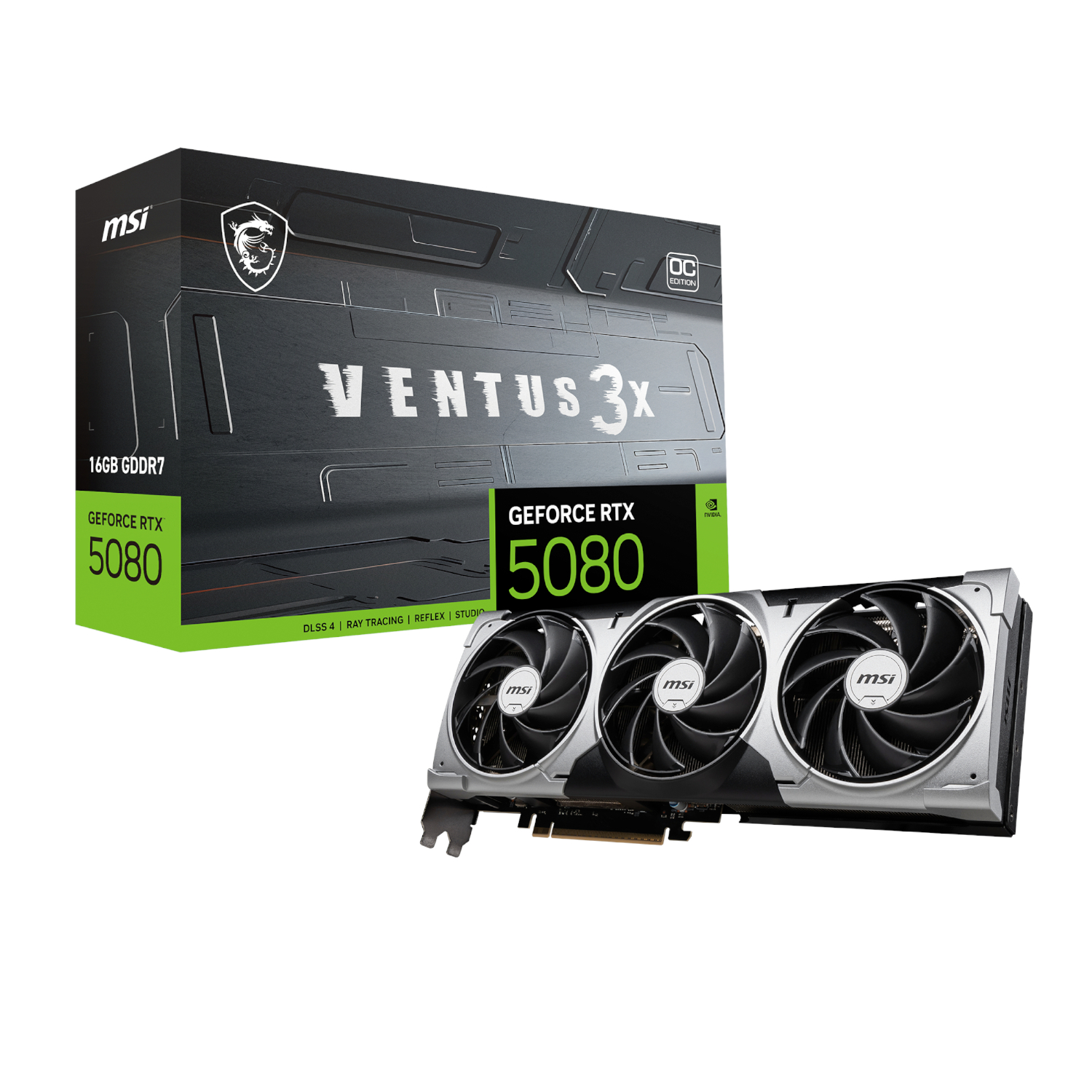

MSI GeForce RTX 5080 VENTUS 3X OC 16G Graphics Card

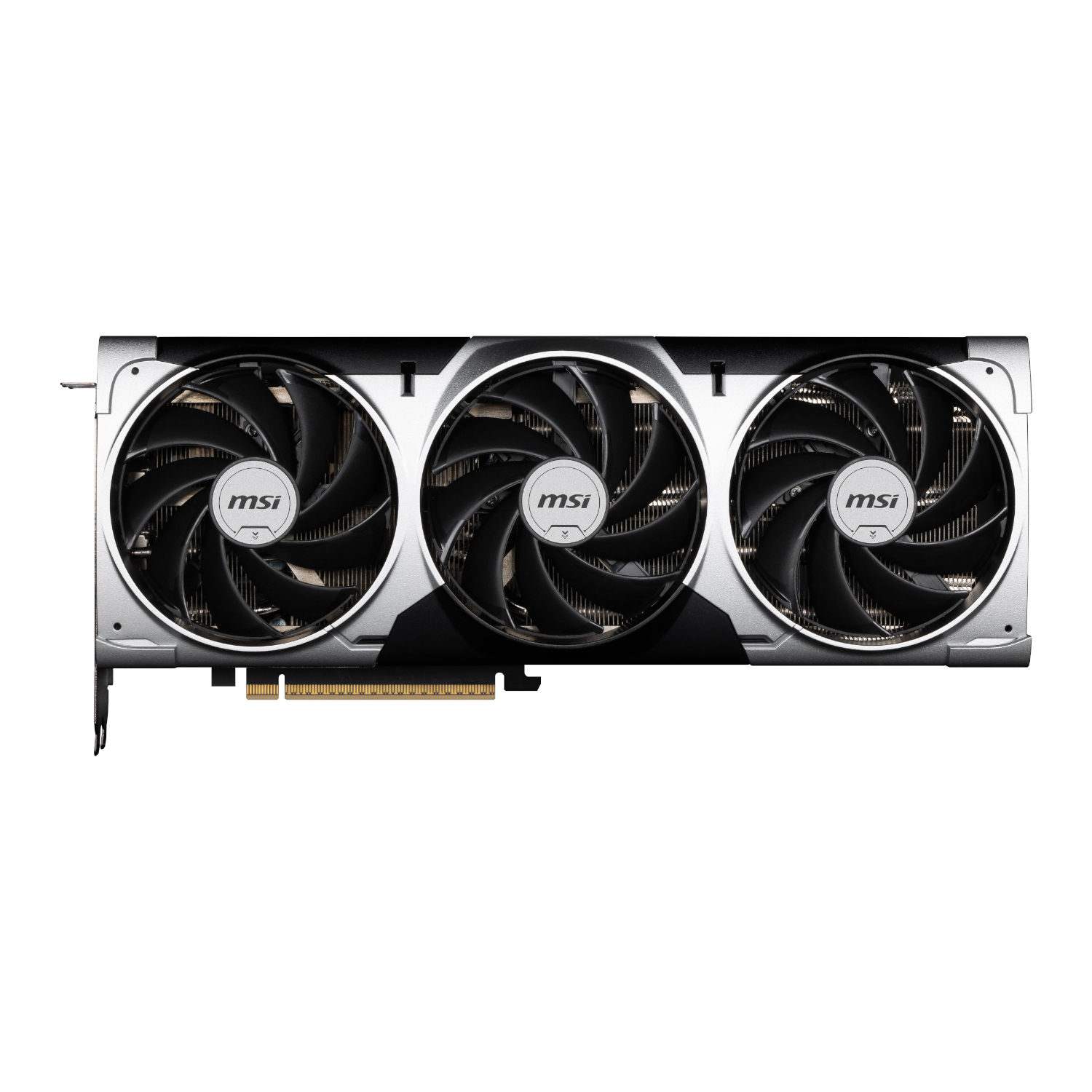

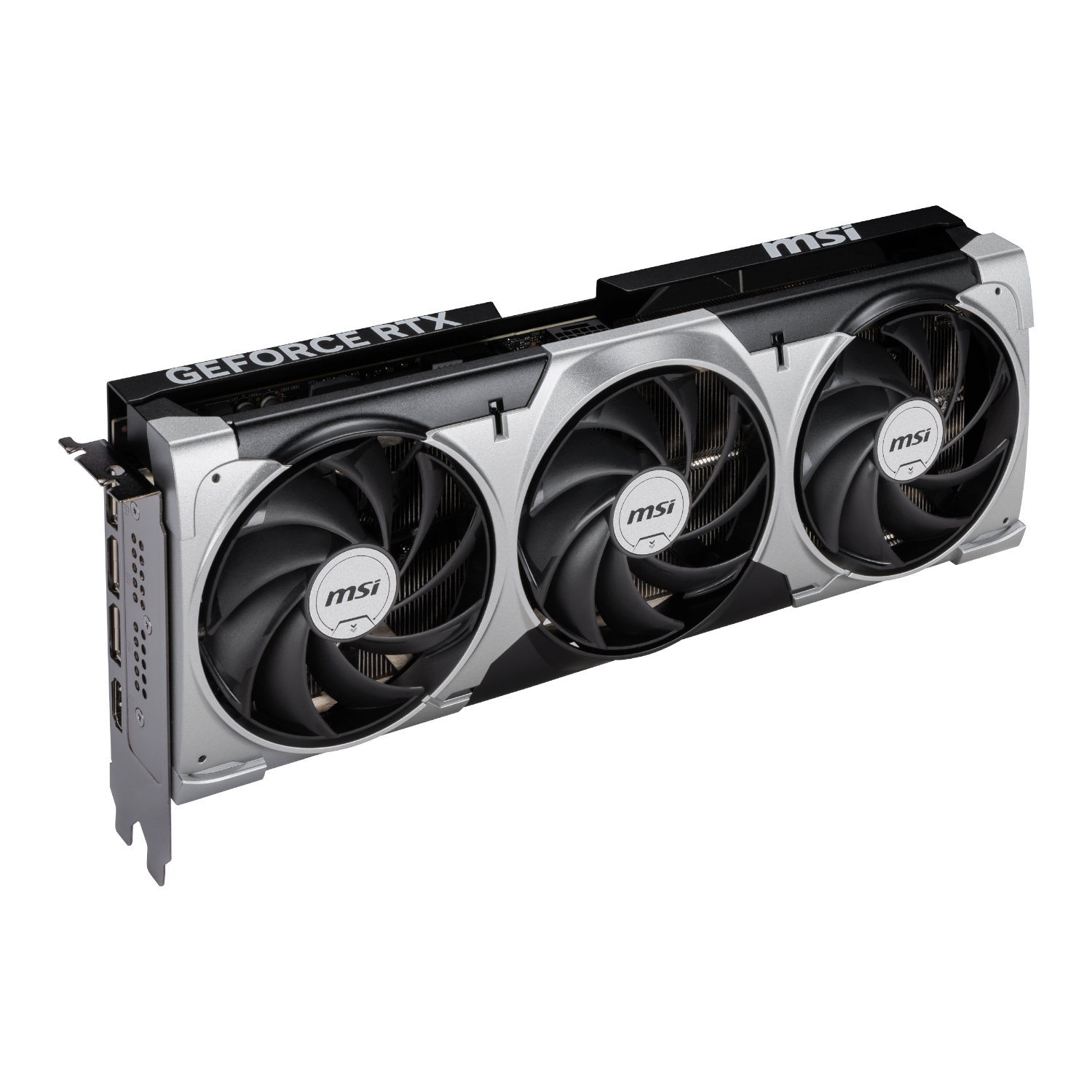

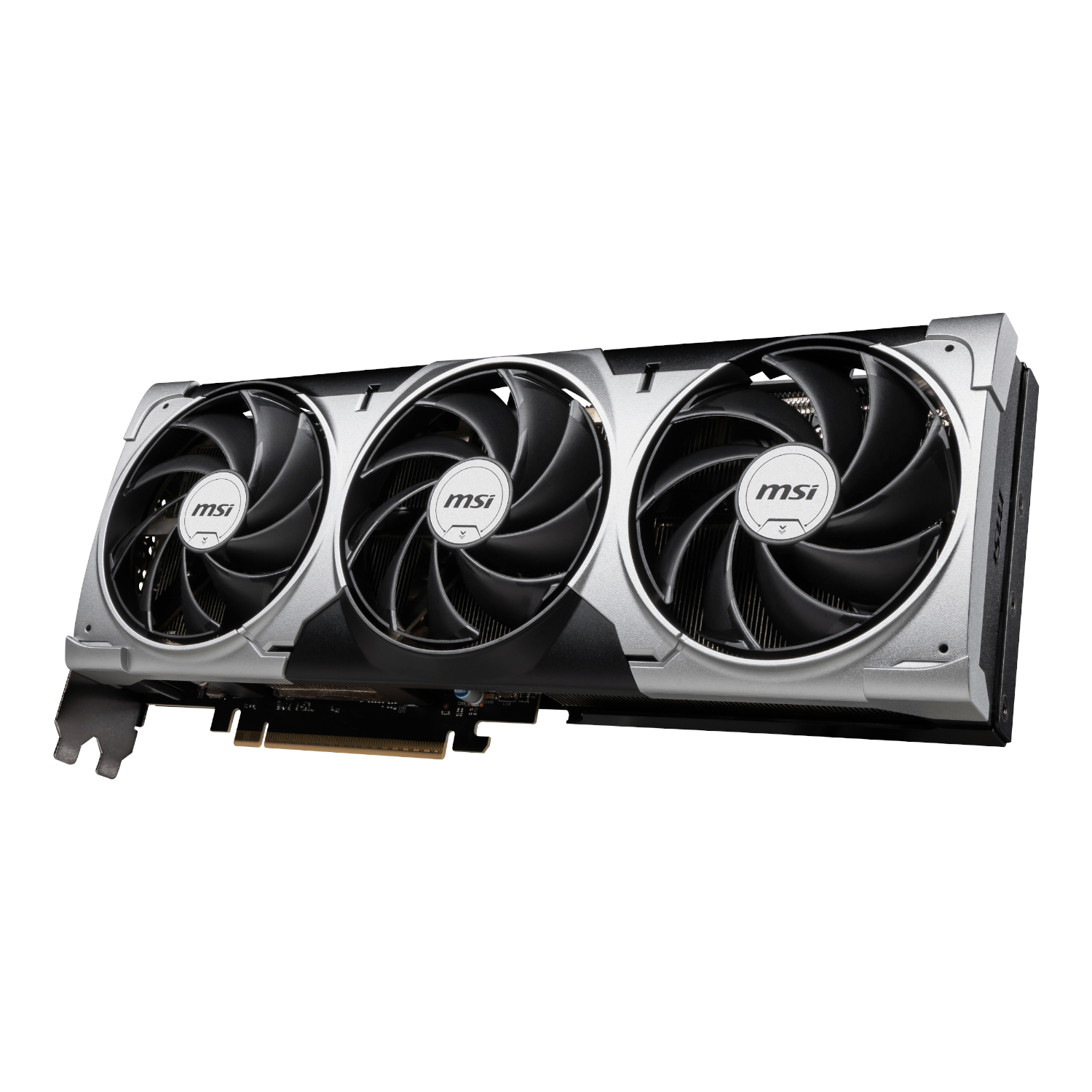

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build. Three fans on a large heatsink deliver both superior and quieter cooling.

You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

TORX Fan 5.0 enhances airflow and pressure through an improved fan design. Arc rings link three sets of 22-degree-tilted fan blades, increasing airflow by 23% compared to axial fans. Two sets of durable ball bearings spin the fans for years of intense and lengthy gaming sessions.

FEATURES:

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Extreme Performance Clock: 2655 MHz (MSI Center)
• Boost Clock: 2640 MHz
• SFF-Ready Enthusiast GeForce Card
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management

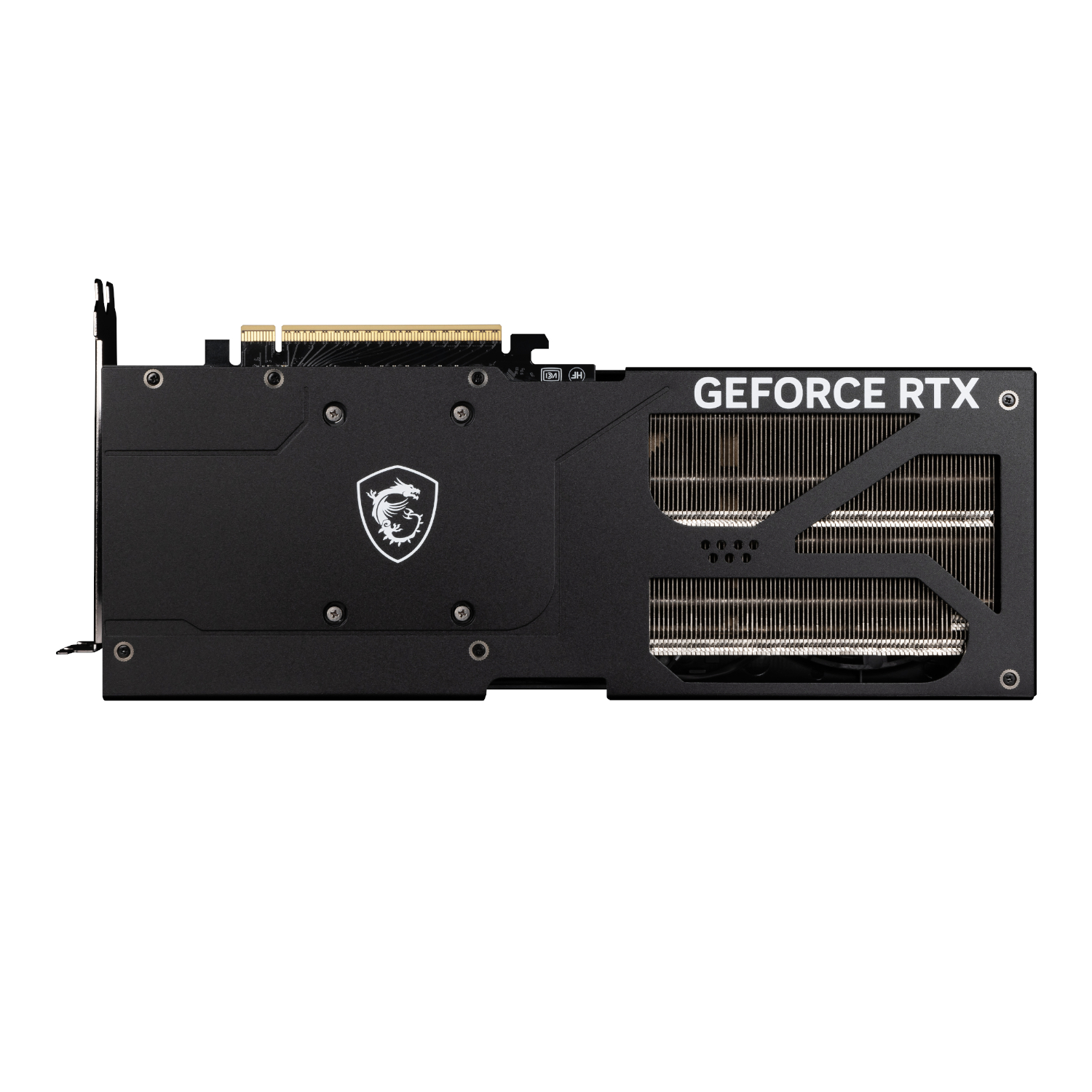

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat

SPECIFICATIONS:

• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5080
• Interface: PCI Express® Gen 5
• Core Clocks: Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz
• CUDA® Cores: 10752 Units
• Memory Speed: 30Gbps
• Memory: 16GB GDDR7
• Memory Bus: 256-bit

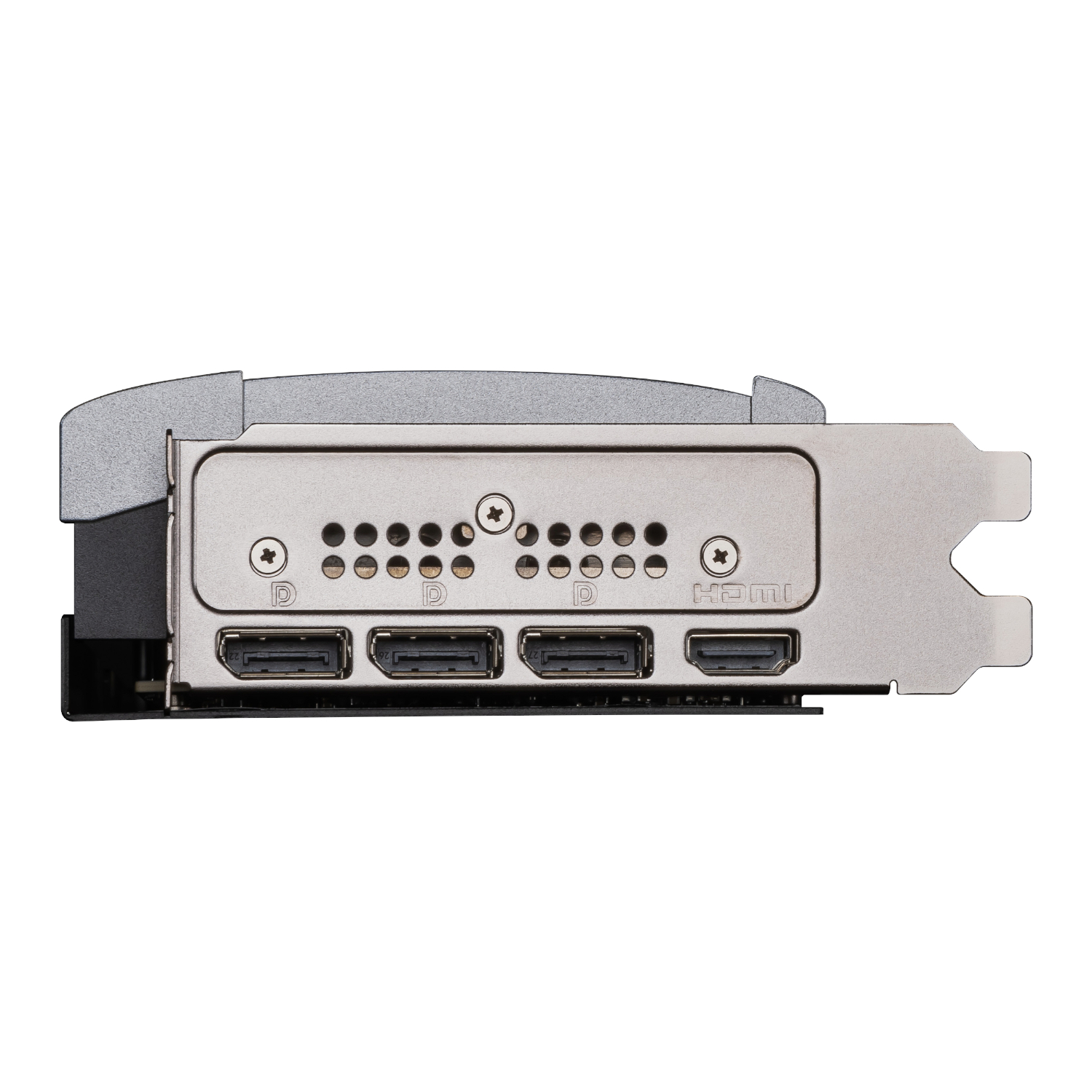

• Output:
  • DisplayPort x 3 (v2.1b)
  • HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
• HDCP Support: Yes
• Power Consumption: 360W
• Power Connections: 16-pin x1
• Recommended PSU: 850W
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• Maximum Displays: 4
• G-Sync® Technology: Yes
• Digital Maximum Resolution: 7680 x 4320
• Product Dimensions: 30.3 x 12.1 x 4.9 cm
• Product Weight: 1084g

WHAT’S IN THE BOX:

• MSI GeForce RTX 5080 VENTUS 3X OC 16G Graphics Card – Silver x1
